Grizzly Screens

Grizzly Screens

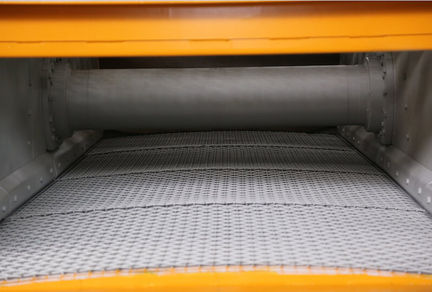

SARIÇELİK branded screens are produced for rough screening after primary crushing process. They are double bearing, single shaft, inclined heavy-duty type screens. Grizzly screens have hub bearing and two floors. The upper floor is made of high manganese steel casting or special steel highly resistant to wear in order to improve resistance against large materials. With its resistant and strong body, it operates safely and seamlessly. Adjustable grids allow separation of materials in desired sizes. The meshes are mounted in the form of steps so that they ensure easy transfer of the material from end-toend. Depending on the customer’s request, it is produced as grease and oil drive system.


MODEL Lubrication System Width (B) Length (L) Floor number Engine (kW) Weight (kg)
IEG10352 Gres Yağlı 1000 3500 2 11 3500
IEG12402 Gres Yağlı 1200 4000 2 15 4200
IEG14402 Gres Yağlı 1400 4000 2 18.5 4800
IEG16402 Gres Yağlı 1600 4000 2 22 5500
